SB 50 Anderson Connector Set – 600V and 50A

Description

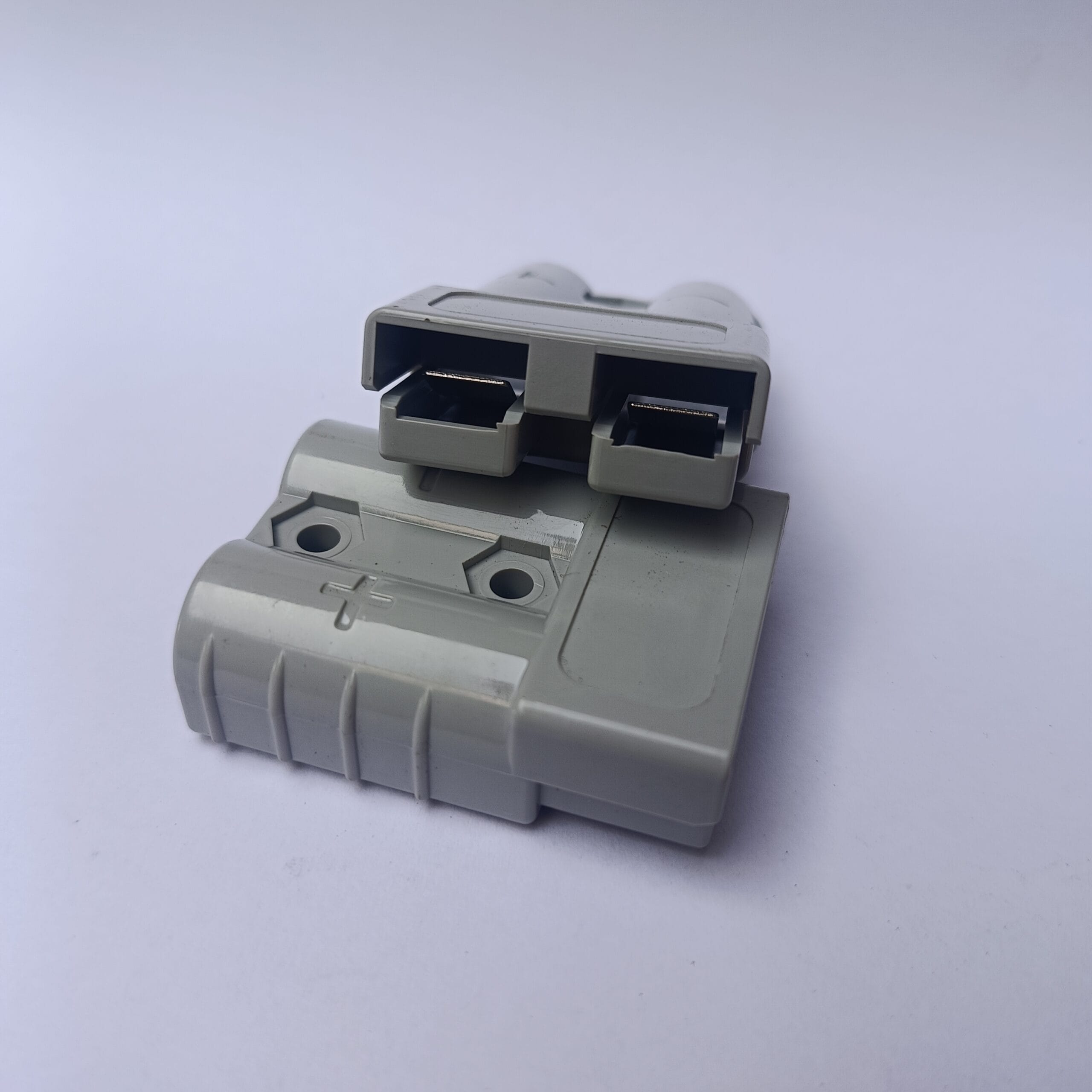

600V 50A Anderson Power Connector – Grey

Applications:

1. Battery Connections
2. Forklifts
3. Battery Chargers
4. Solar Panels
5. Wind Generators
6. Tow Trucks
7. Snow Plows
8. Farm Equipment
9. Jumper Booster Cables
10. Welding Equipment
11. Winches
12. Electric Vehicles etc.

Features:

1. The Plug is Impact Resistant Poly-carbonate and Connectors are Silver plated Solid Copper Terminals
2. Provide simplified assembly and minimize the number of components
3. Silver-plated copper contacts inside housings that strongly force the contacts together
4. Contacts feature a sacrificial tip that allows high current circuit interrupt
5. Prevents accidental cross mating of circuits
6. For signal transmission or the added safety of a premade ground position
7. Easy to use
8. Durable in use
9. Suitable for Solar Panels, Dual Battery Systems, Caravans, 4WD, Fridges, etc

Specifications:

1. Housing Material : Poly-carbonate (PC)
2. Contact material : Pure copper silver plating
3. Color : Grey
4. Size : 48×35.1×15.9 mm
5. Rated current : 50 A
6. Rated voltage : 600 V
7. Vibration resistance : excellent
8. Cable size : 8B&S / 8AWG

Packages Includes:

1 x 600V 50A Anderson Power Connector – Grey
